TS146-TS series subwoofer speaker

Tel: +86 20 31047456

E-mail: iven.yip@gmail.com / ivenyip@126.com

Click to see a larger version

Frequency response : 40~300Hz
Sensitivity@1W/1M,f>100Hz : 99dB
Maximum continuous level at 1m : 126dB
Peak level at 1m : 132dB
Nominal impedance(Ω) : 8 ohm
Power(RMS) : 600W
Power(Program) : 1200W
Power(PEAK) : 2400W
Nominal directivity@-6dB : NC
Recommended amps into(8Ω) : 500~1000W
Drivers : 1x 18inch(100mm vocie cone)
Cabinet : 18mm plywood
Dimensions(DxWxH) : 570x690x570mm
Net unit weight : 45kg

Link to buy

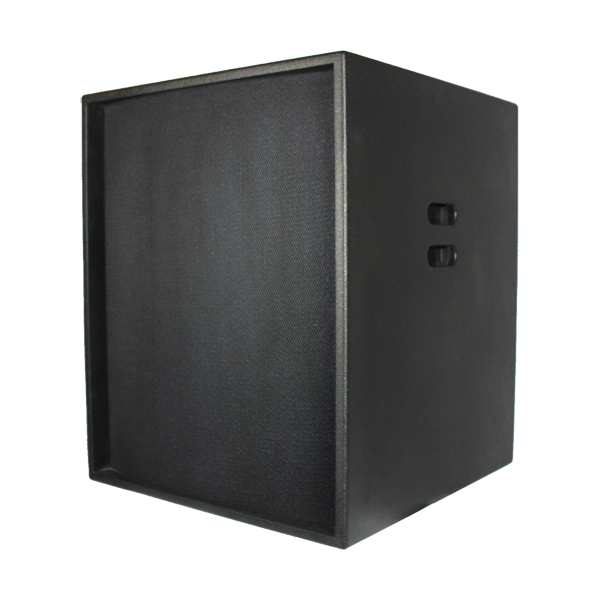

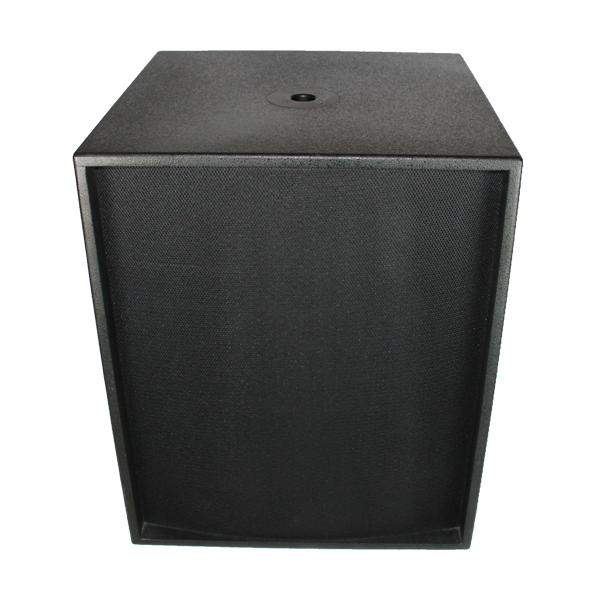

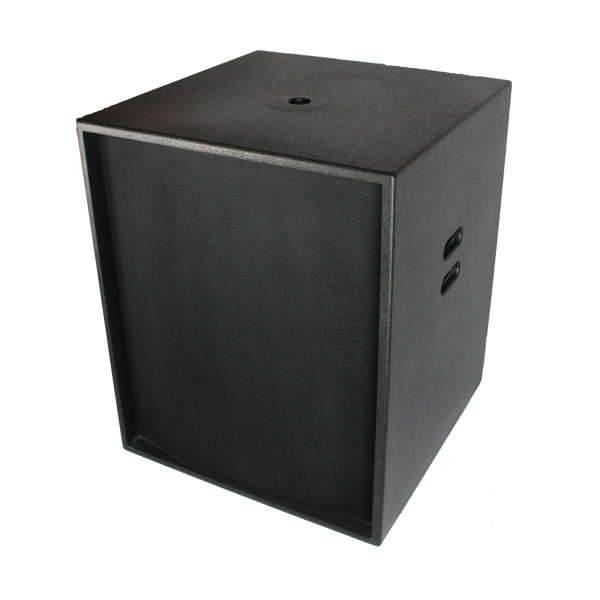

The IvenAudio TS146 sub-bass system has been designed to be used with IvenAudio T series systems to extend and increase the total low frequency output power. It can also be used as the VL series system. The TS146 provides good mid-bass punch with extended sub-bass output from one direct radiating 18” (460mm) driver with 4 inch (100mm) high temperature Voice cone and 220mm Ferrite Magnet.
The plywood cabinet is fitted with substantial handles for easy deployment. It features big porting to reduce air noise.
