T38BT38B

Frequency response : 50Hz~19kHz
Sensitivity@1W/1M,f>100Hz : 100dB SPL
Maximum continuous level at 1m : 126dB SPL
Peak level at 1m : 132dB SPL
Nominal impedance(Ω) : 8Ω
Power(RMS) : 400W
Power(Program) : 800W
Power(PEAK) : 1600W
Nominal directivity@-6dB : 90x40
Recommended amps into(8Ω) : 400~800W
Drivers : 1x15”LF(75mm voice coil)+1x1.4” exit HF(75mm voice coil)
Cabinet : 18mm plywood with protector paint
Dimensions(DxWxH) : 420x468x700mm
Net unit weight : 33kg

  Link to buy

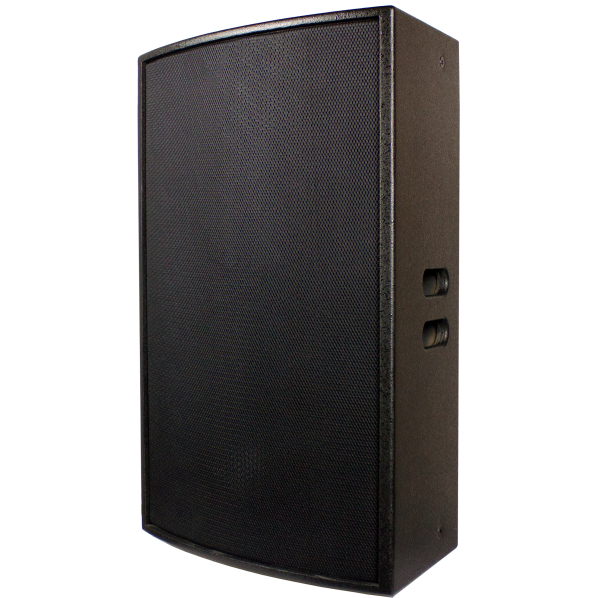

The IvenAudio T38B is a high power and high performance, wide-bandwidth system in an incredibly compact and efficient package. Flat frequency response is provided by a 10 inch (380mm) LF driver (75mm Voice coil) teamed with a 1.4inch(36mm) exit compression driver  (75mm Voice coil)mounted on a rotatable 90º x 40º constant directivity HF horn.

The IvenAudio T38B is perfect for higher power applications where ease of installation or speed of deployment are important factors.

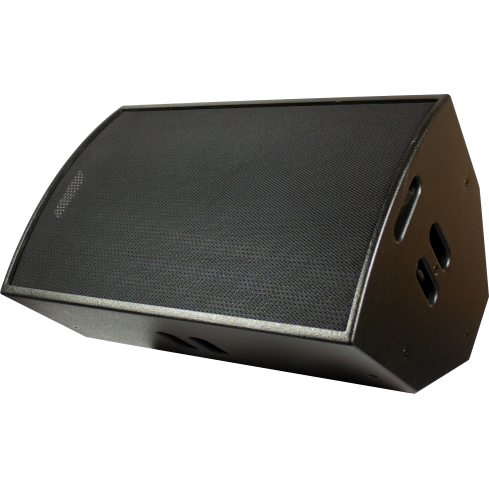

The IvenAudio T38B Due to its cabinet geometry, with its 5°、15°、30、°45° slanted panels, the T38B is at home on the stage either as a near field、mid field、far field monitor, or as a front fill or side fill. This ergonomic design and its rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height. Its thirteen M8 inserts make a variety of mounting methods possible including horizontal or vertical setup.It has 3 wood handles.

IvenAudio recommends T38B used with TS138 or TS146、TS246 subwoofer.

T38B
