T30T30

Frequency response : 60Hz~19kHz
Sensitivity@1W/1M,f>100Hz : 98dB SPL
Maximum continuous level at 1m : 122dB SPL
Peak level at 1m : 125dB SPL
Nominal impedance(Ω) : 8Ω
Power(RMS) : 350W
Power(Program) : 700W
Power(PEAK) : 1400W
Nominal directivity@-6dB : 90x70
Recommended amps into(8Ω) : 300~600W
Drivers : 1x12”LF(75mm voice coil)+1x1” exit HF(44mm voice coil)
Cabinet : 15/18mm plywood with protector paint
Dimensions(DxWxH) : 350x388x570mm
Net unit weight : 24kg

  Link to buy

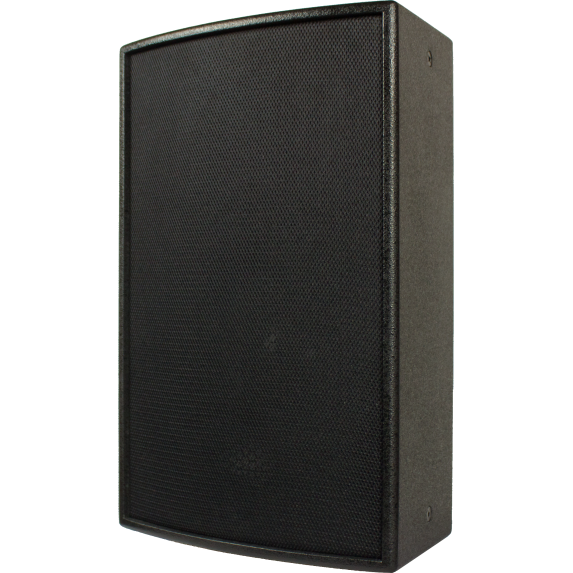

The IvenAudio T30 is a high power and high performance, wide-bandwidth system in an incredibly compact and efficient package. Flat frequency response is provided by a 12 inch (305mm) LF driver (75mm Voice coil) teamed with a 1inch(25mm) exit compression driver  (44mm Voice coil)mounted on a rotatable 90º x 70º constant directivity HF horn.

The IvenAudio T30 is perfect for higher power applications where ease of installation or speed of deployment are important factors.

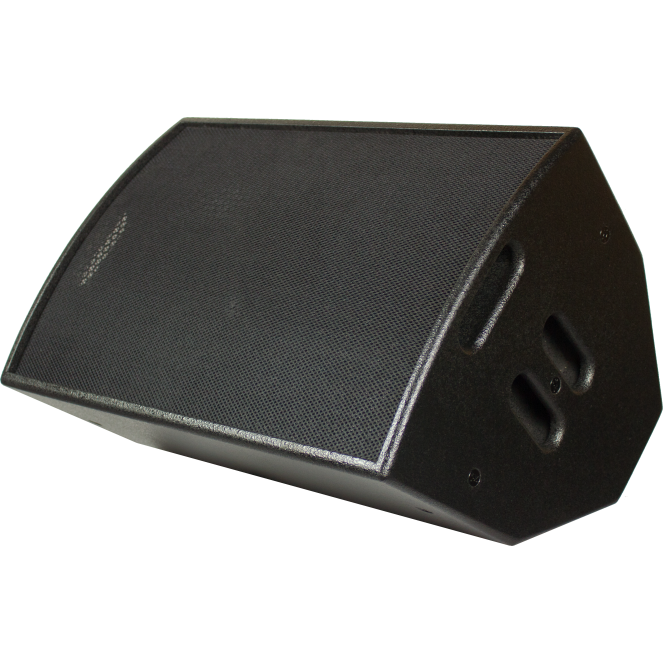

The IvenAudio T30 Due to its cabinet geometry, with its 5°、15°、30、°45° slanted panels, the T30 is at home on the stage either as a near field、mid field、far field monitor, or as a front fill or side fill. This ergonomic design and its rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height. Its twelve M8 inserts make a variety of mounting methods possible including horizontal or vertical setup.It has 3 wood handles.

IvenAudio recommends T30 used with TS138 or TS146、TS246 subwoofer.
