T25BT25B

Frequency response : 58Hz~18kHz
Sensitivity@1W/1M,f>100Hz : 96dB SPL
Maximum continuous level at 1m : 121dB SPL
Peak level at 1m : 127dB SPL
Nominal impedance(Ω) : 8Ω
Power(RMS) : 300W
Power(Program) : 600W
Power(PEAK) : 1200W
Nominal directivity@-6dB : 90x70
Recommended amps into(8Ω) : 200~600W
Drivers : 1x10”LF(75mm voice coil)+1x1” exit HF(44mm voice coil)
Cabinet : 15/18mm plywood with protector paint
Dimensions(DxWxH) : 310x348x500mm
Net unit weight : 21kg

  Link to buy

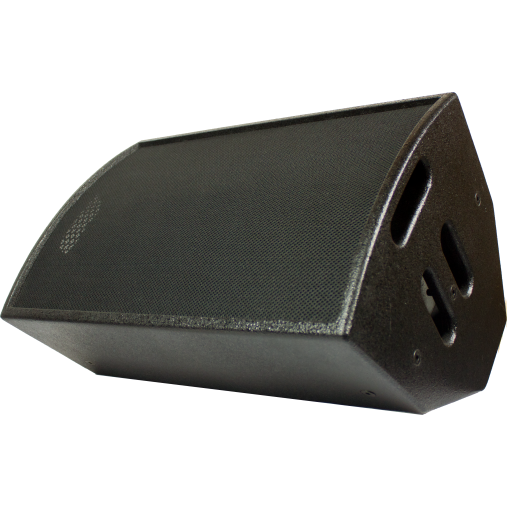

The IvenAudio T25B is a high power and high performance, wide-bandwidth system in an incredibly compact and efficient package. Flat frequency response is provided by a 10 inch (250mm) LF driver (75mm Voice coil) teamed with a 1inch(25mm) exit compression driver  (44mm Voice coil)mounted on a rotatable 90º x 70º constant directivity HF horn.

The IvenAudio T25B is perfect for higher power applications where ease of installation or speed of deployment are important factors.

The IvenAudio T25B Due to its cabinet geometry, with its 5°、15°、30、°45° slanted panels, the T25B is at home on the stage either as a near field、mid field、far field monitor, or as a front fill or side fill. This ergonomic design and its rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height. Its twelve M8 inserts make a variety of mounting methods possible including horizontal or vertical setup.It has 3 wood handles.

IvenAudio recommends T25B used with TS138 or TS146、TS246 subwoofer.

T25B
